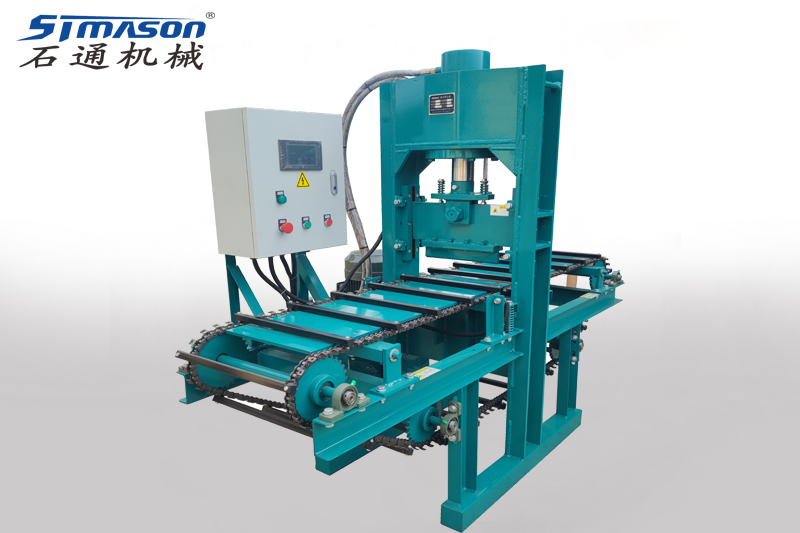

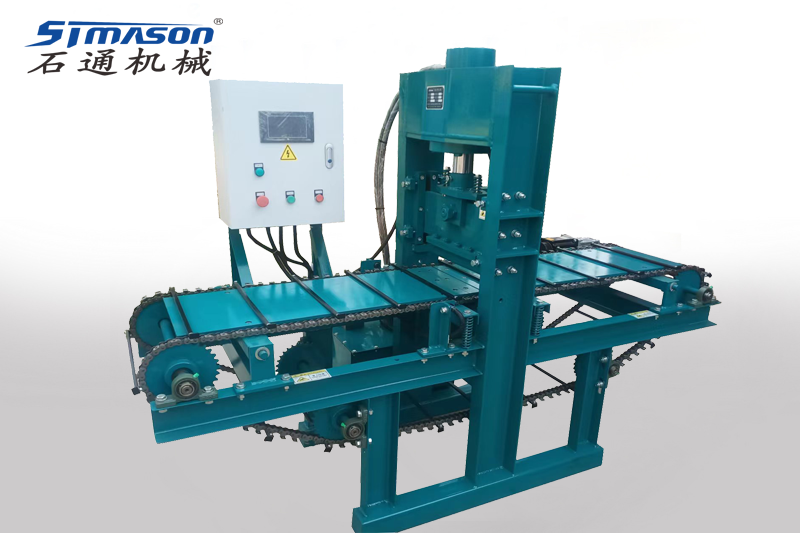

STK20/40 series automatic hydraulic stone splitter

STK20/40 series automatic hydraulic stone splitter

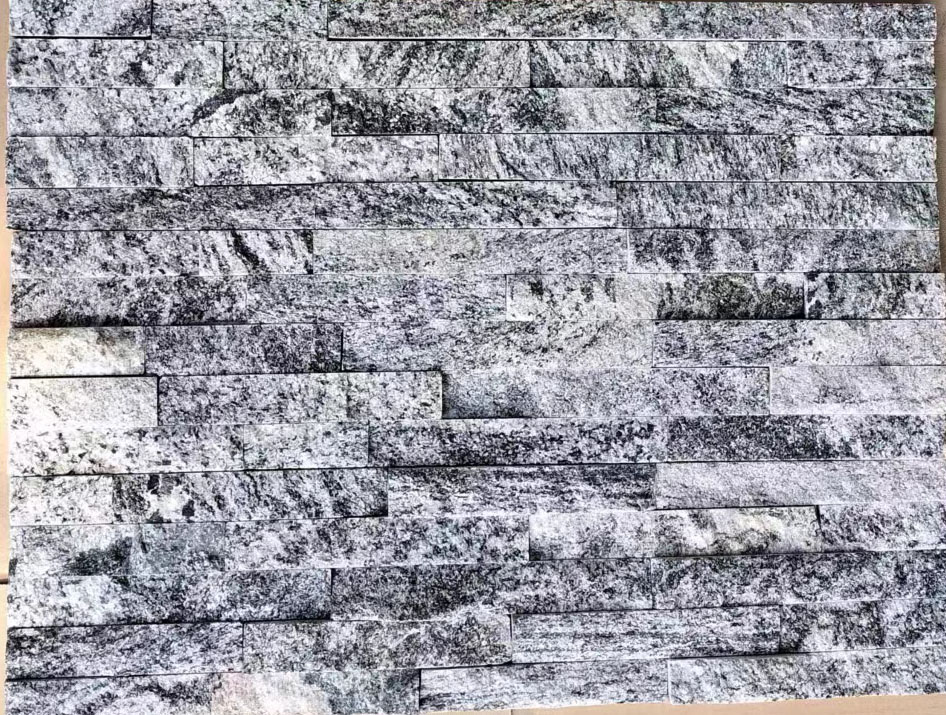

The STK series automatic hydraulic stone splitting machine uses an automatic feeding conveyor chain and adopts PLC control and calculation, which greatly improves production efficiency and raw material utilization and reduces labor intensity. It is the main equipment for the production of adhesive culture stones at present. It can be customized in various specifications and is very popular among stone manufacturers.

Features:

PLC automatic control

Touch screen human-machine interface

Chain conveying mechanism

No need to adjust different raw material lengths

Cutting thickness can be adjusted arbitrarily

Flexible and intelligent thickness compensation



产品详情





Technical parameter:

Product Model

STK20

STK40

Splitting  power

20ton

40ton

Supply voltage

3N/380V/50Hz

3N/380V/50Hz

Motor power

4kw

5.5kw

splitting length

300mm

300mm

splitting height

110mm

160mm

Tank Capacity

30L

45L

Overall size

2100*1100*1530mm

2100*1100*1670mm

Net weight

560kg

598kg
