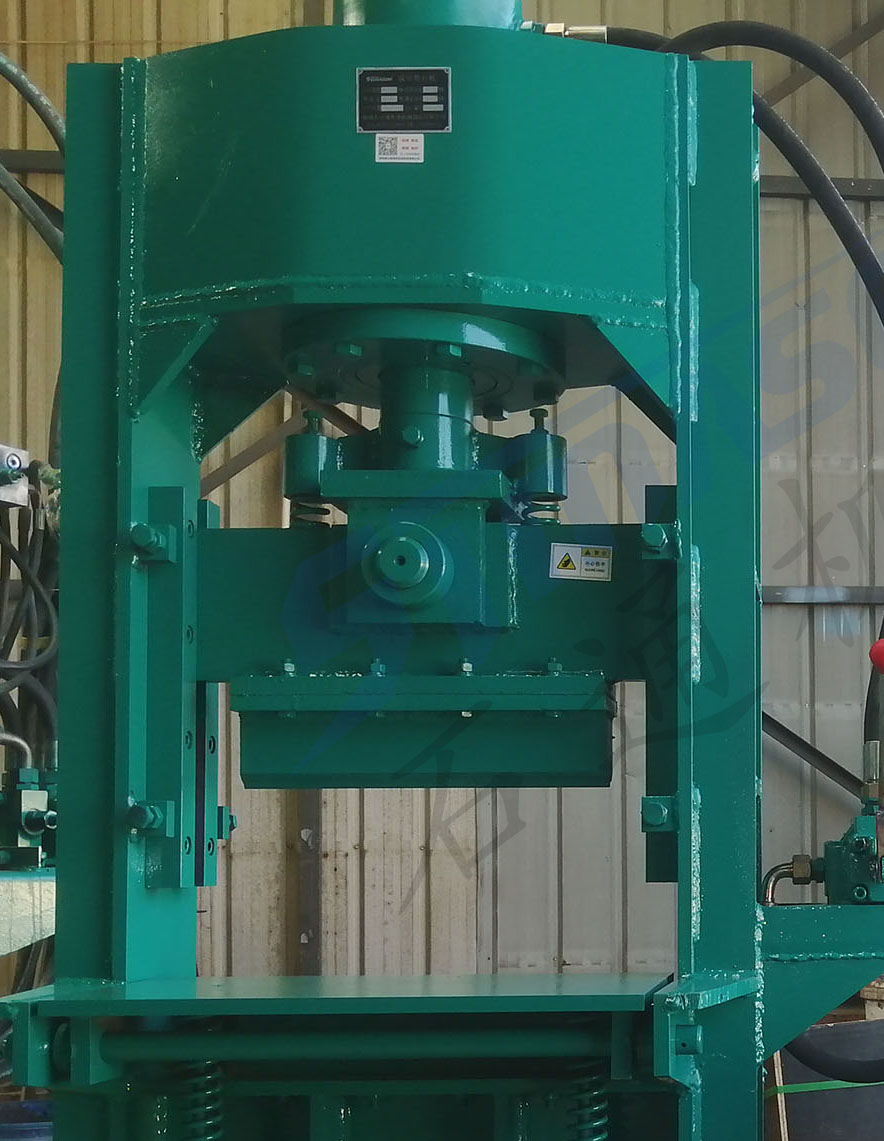

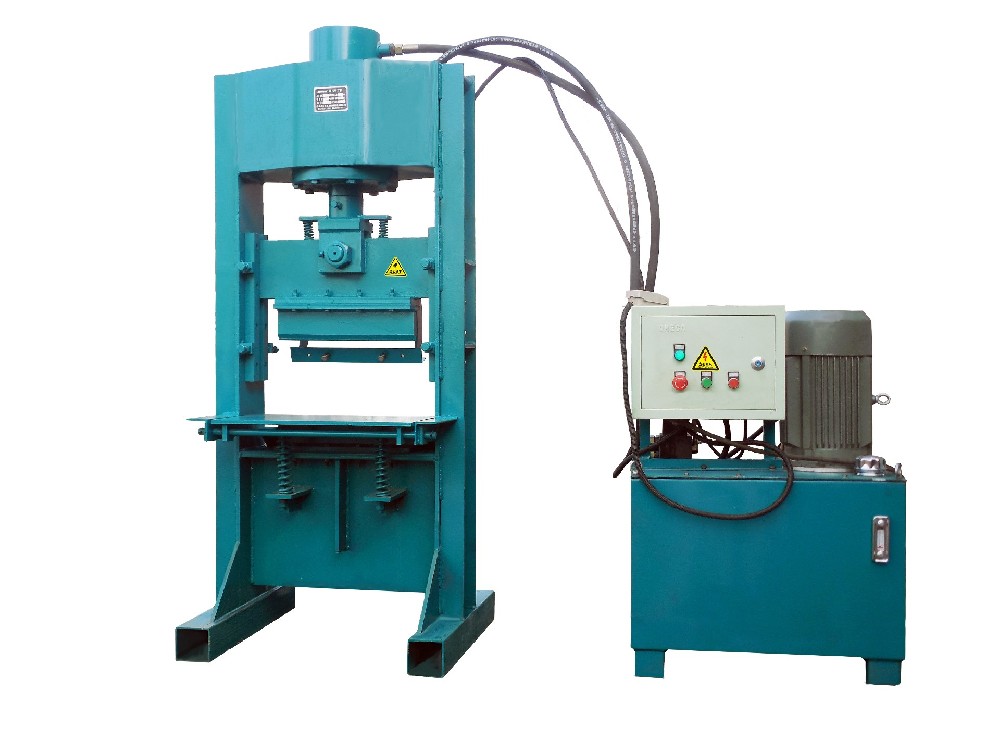

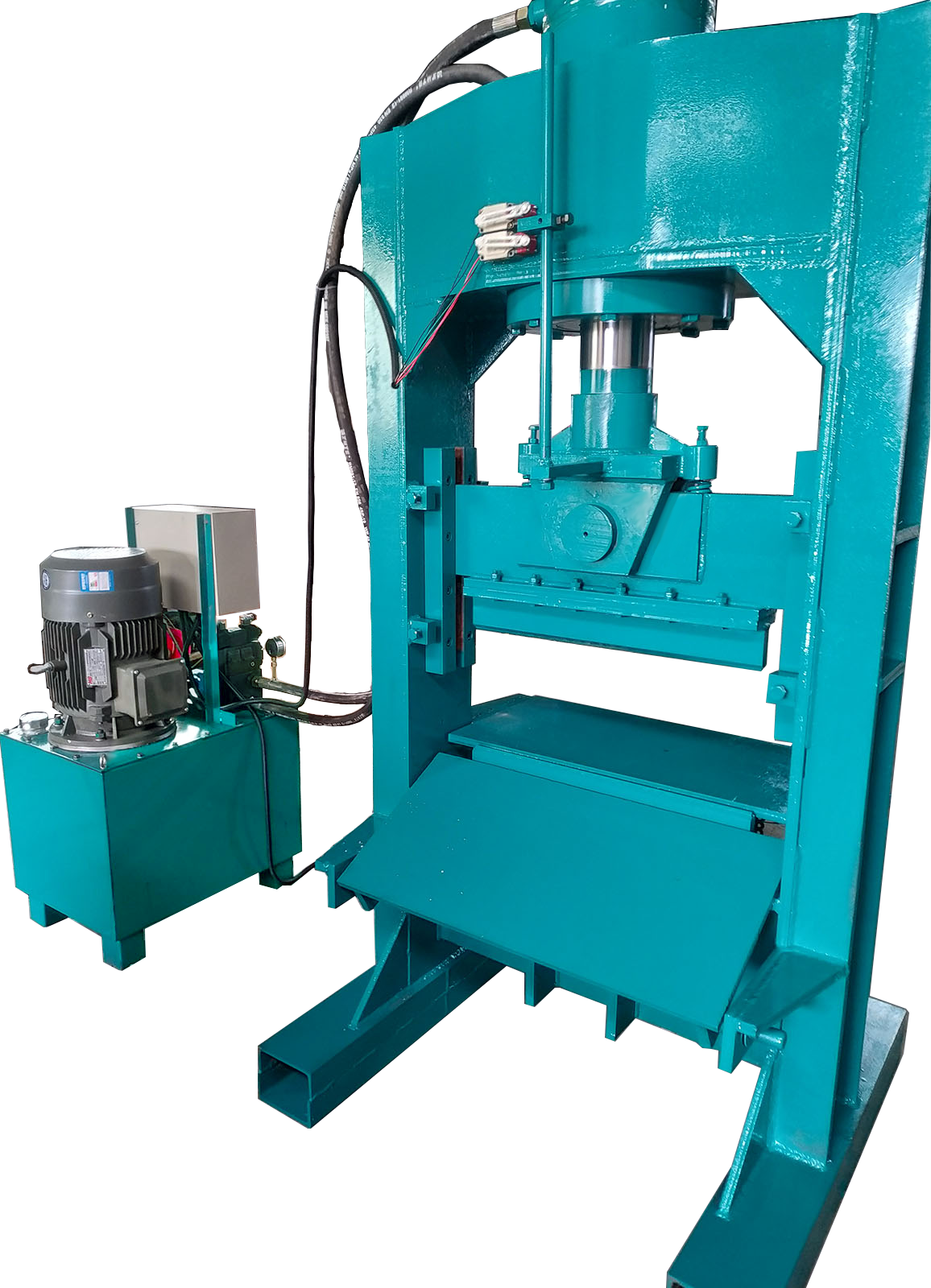

STY80/160 hydraulic stone splitting machine is suitable for hard stone natural section, square stone, floor stone splitting processing.
The machine adopts foot switch to control the cutting tool action, there are a variety of cutting tools can be selected to adapt to different scenarios, but also optional extended table with roller shaft.
Product Model | STY80 | STY160 |
Splitting power | 80ton | 160ton |
Power supply | 3N//380V/50Hz | 3N//380V/50Hz |
Rated power | 7.5kw | 11kw |
Max splitting width | 400mm | 400mm |
Max splitting height | 240mm | 320mm |
Min splitting height | 20MM | 20mm |
body size | 700mm*1000mm*1850mm | 850mm*1200mm*2300mm |
body weight | 820kg | 1200kg |
Tank Capacity | 110L | 110L |
Hydraulic unit size | 700*500*1050 | 700*500*1150 |
Hydraulic unit weight | 170kg | 210kg |
Total weight | 990kg | 1410kg |
