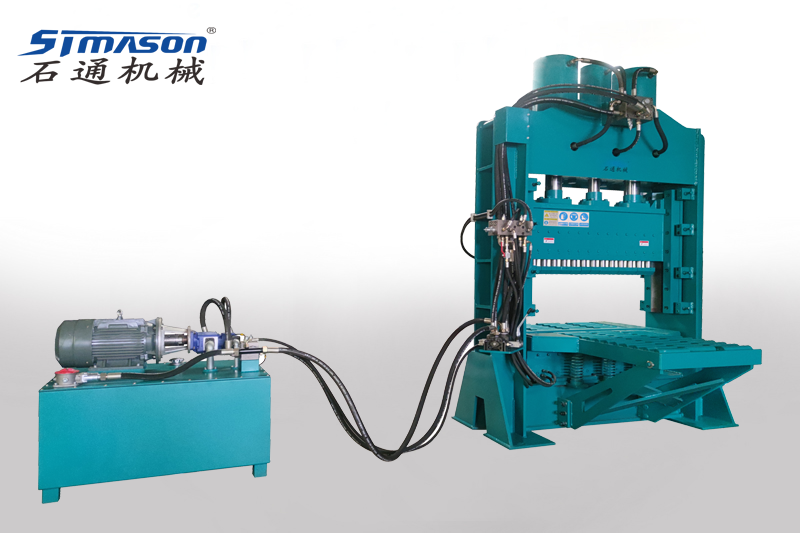

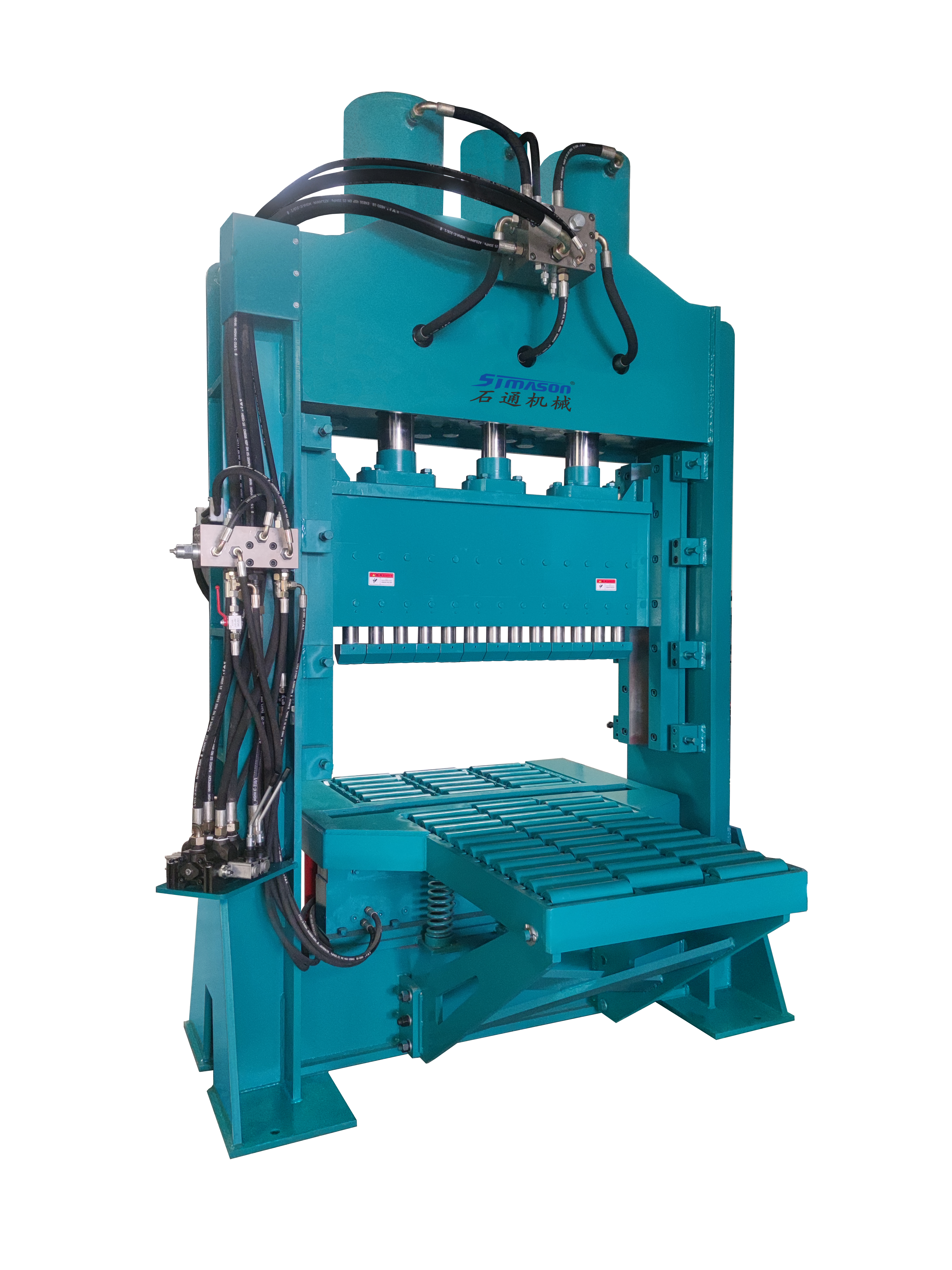

 STZ350 hydraulic stone splitting machine

 STZ350 hydraulic stone splitting machine


STZ multi tooth hydraulic stone splitters adopt retractable floating cutter teeth, each cutter tooth is independent of each other and can be locked separately, which can adapt to the processing of various stones with uneven surfaces.



产品详情





型号Product Model

STZ160

STZ300

STZ350

劈裂力

Splitting power

160ton

300ton

350

电源

Power supply

3N/380V /50Hz

3N/380V /50Hz

3N/380V /50Hz

额定功率

Rated power

15kw

18.5kw

18.5kw

最大劈裂长度

Max splitting length

650mm

650mm

1300mm

最大劈裂高度

Max splitting height

320mm

430mm

600mm

主机尺寸

body size

1350mm*1560mm*2300mm

1480mm*1830mm*2770mm

2500mm*2000mm*3550mm

主机重量

body weight

1950kg

3500kg

7700kg

油箱容积

Tank Capacity

300L

300L

600L

液压站尺寸

Hydraulic unit size

1080mm*780mm*1310mm

1050mm*750mm*1200mm

1250mm*900mm*1290mm

液压站重量

Hydraulic unit weight

320kg

380kg

450KG

合计重量

Total weight

2270kg

3840kg

8150kg
