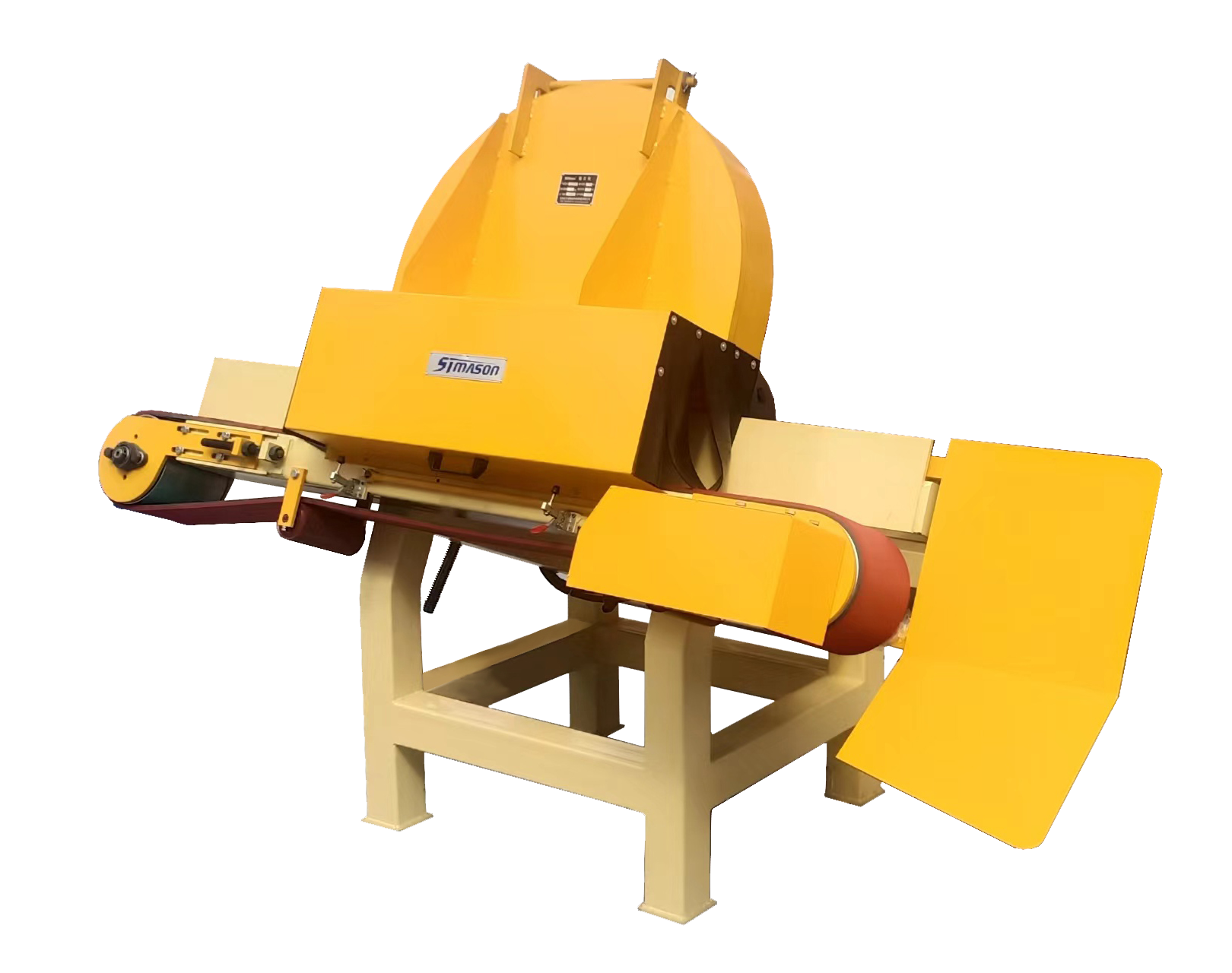

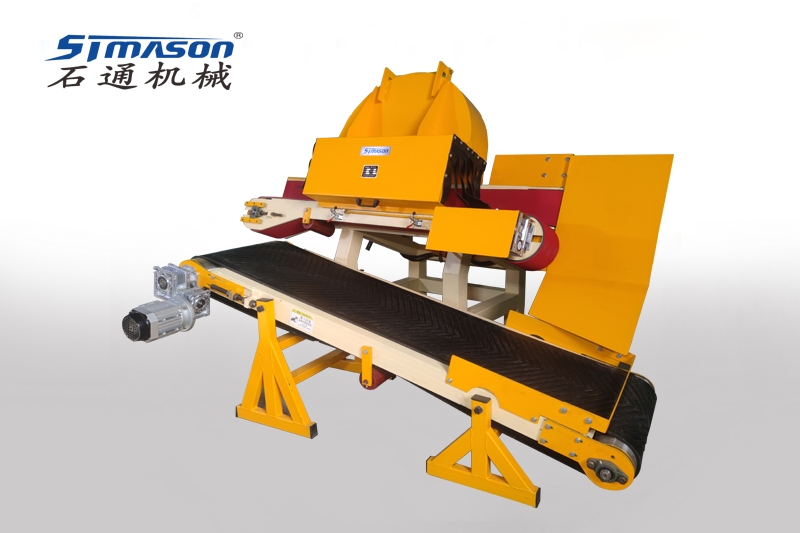

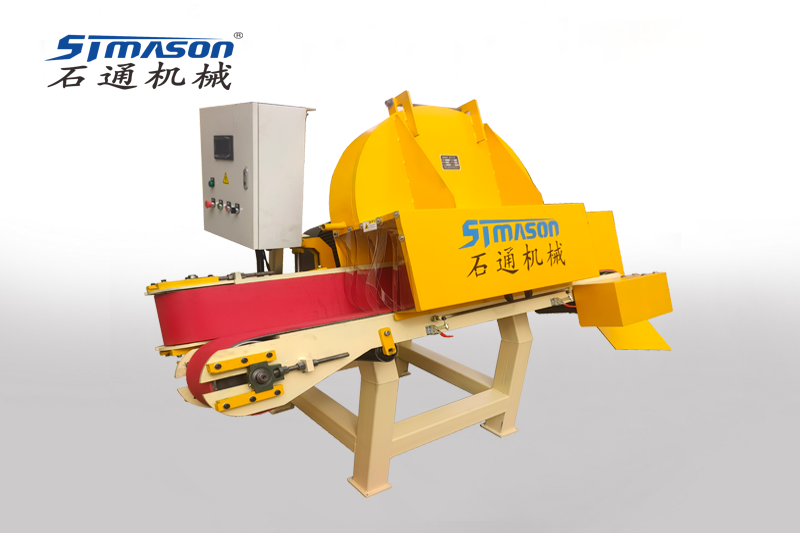

STJV70-A thin stone veneer saw

STJV70-A thin stone veneer saw

STJV70-A thin stone veneer saw is a more optimized design of thin SLATE cutting machine, the machine adopts PLC control, touch screen man-machine interface, can automatically adjust the cutting speed accurately, suitable for high efficiency cutting wall stone veneer sheet.




产品详情








Technical parameter

blade diameter                           600-700mm

main motor power                            22kw

feed rate                              2.3 m/min

cutting height(max)                         270mm

cutting thickness(max)                       40mm

Dimensions(L*W*H)                    2500mm*1300mm*1800mm

weight                                900kg
