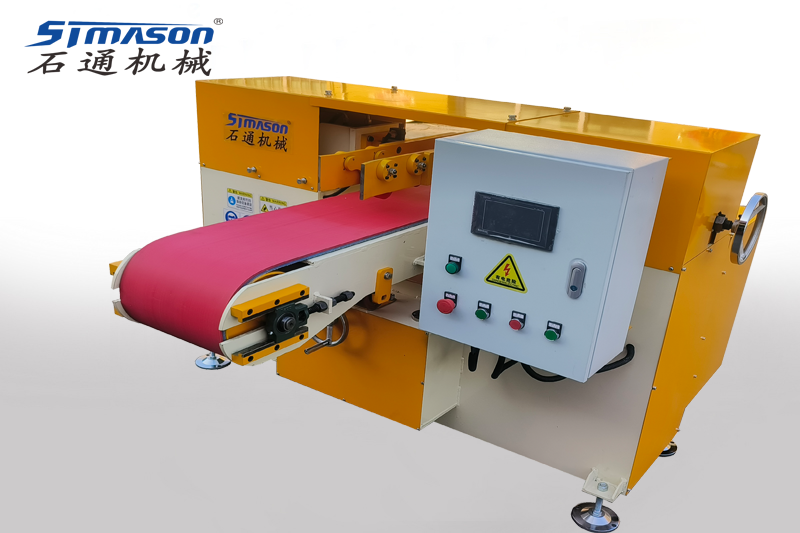

STMY30 Automatic double Sided splitface machine
STMY30 automatic double-sided face machine is used to chisel sawn stone strips into beautiful split surfaces. The machine can easily adjust the feed speed to obtain different surface effects
STMY30 automatic double-sided face machine is used to chisel sawn stone strips into beautiful split surfaces. The machine can easily adjust the feed speed to obtain different surface effects
型号Product Model |
STMY30 |
劈裂力Splitting power |
20ton |
电源Power supply |
3N/380V /50Hz |
额定功率Rated power |
5.5kw |
最大劈裂宽度Max splitting width |
300mm |
最小劈裂宽度Min splitting width |
50mm |
最大劈裂厚度Max splitting thickness |
150mm |
油箱容积Tank Capacity |
70L |
外形尺寸Overall size |
1820*1690*1120mm |
净重Net Weight |
850kg |
包装尺寸Packing size |
1920*1800*1300mm |
毛重Gross Weight |
1010kg |
