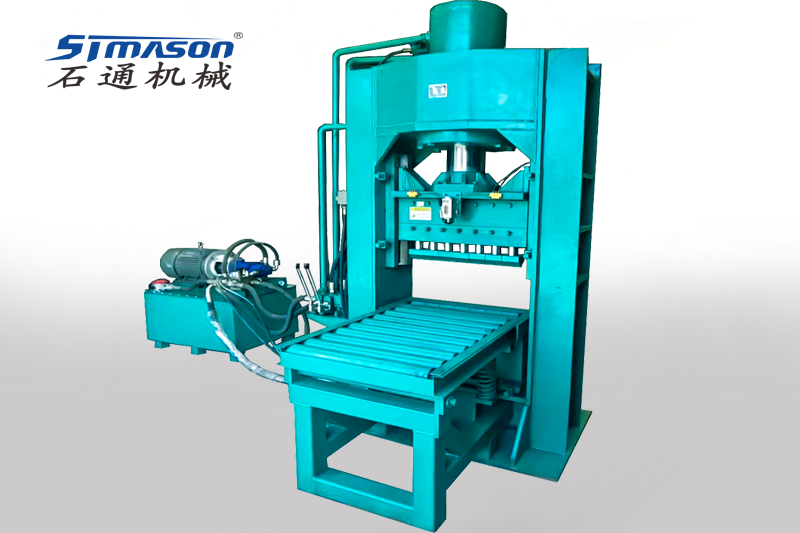

STZ 系列多齿液压劈石机
STZ series Multi tooth hydraulic stone splitter
STZ系列多齿液压劈石机采用可伸缩的浮动刀齿，各个刀齿相互独立，且可以单独锁定，可以适应各种表面不平整的石块加工。
STZ series multi tooth hydraulic stone splitters adopt retractable floating cutter teeth, each cutter tooth is independent of each other and can be locked separately, which can adapt to the processing of various stones with uneven surfaces.
该机操作简单，劈开过程平稳，劈开面平整，适用于较硬材质的石材自然断面、散石，方块石 、条石、地铺石及各种表面不太平整的石头，是目前国内市场上效果最好的自然断面加工设备。
This machine has the advantages of simple operation, smooth splitting process and smooth splitting surface. It is suitable for hard stone natural section, Natural stone veneer ,square stone, strip stone, paving stone and various stones with uneven surface. It is the most effective natural section processing equipment in the domestic market at present.
型号Product Model | STZ160 | STZ300 | STZ350 |
劈裂力 Splitting power | 160ton | 300ton | 350 |
电源 Power supply | 3N/380V /50Hz | 3N/380V /50Hz | 3N/380V /50Hz |
额定功率 Rated power | 15kw | 18.5kw | 18.5kw |
最大劈裂长度 Max splitting length | 650mm | 650mm | 1300mm |
最大劈裂高度 Max splitting height | 320mm | 430mm | 600mm |
主机尺寸 body size | 1350mm*1560mm*2300mm | 1480mm*1830mm*2770mm | 2500mm*2000mm*4550mm |
主机重量 body weight | 1950kg | 3500kg | 7700kg |
油箱容积 Tank Capacity | 300L | 300L | 600L |
液压站尺寸 Hydraulic unit size | 1080mm*780mm*1310mm | 1050mm*750mm*1200mm | 1250mm*900mm*1290mm |
液压站重量 Hydraulic unit weight | 320kg | 380kg | 450KG |
合计重量 Total weight | 2270kg | 3840kg | 8150kg |
