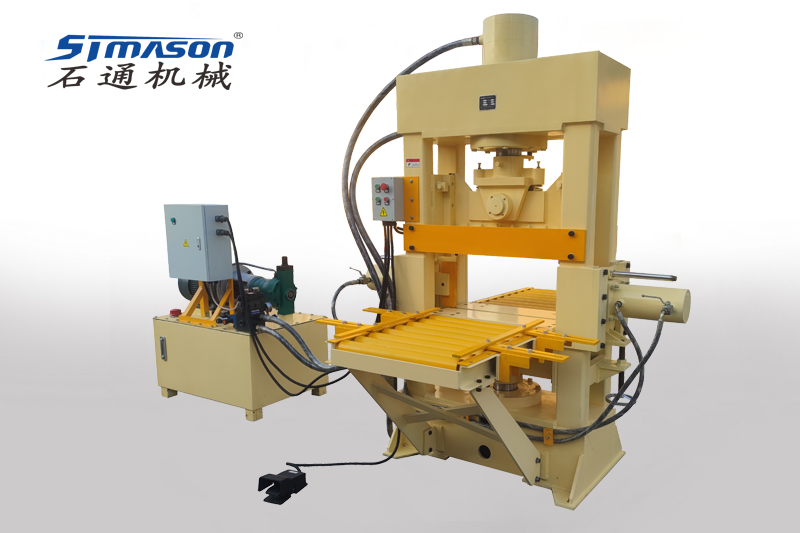

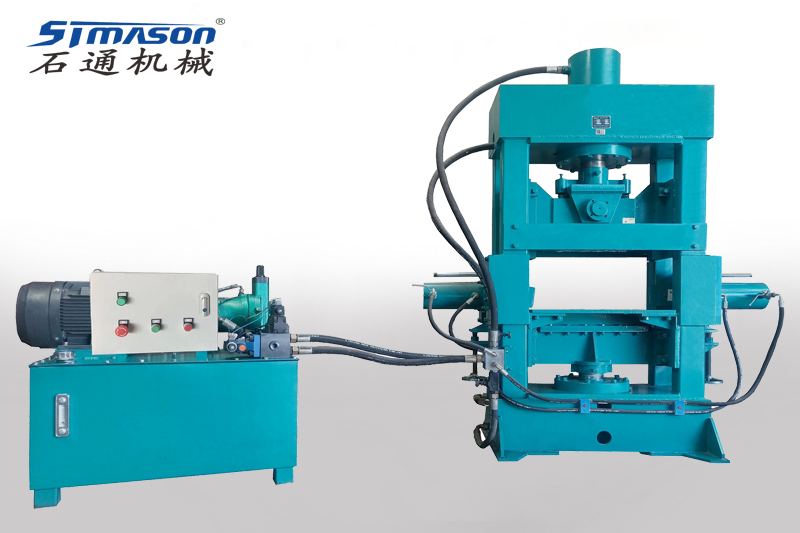

STY200-4 hydraulic stone splitting machine

STY200-4 hydraulic stone splitting machine

STY200-4 hydraulic stone splitters is designed with four sides of blades, suitable for granite, marble, sandstone stone under 600*300 specifications of natural split surface processing, can be configured according to the need of loading and unloading conveying mechanism.


产品详情










Product Model

STY200-4

Splitting power

200ton

Power supply

3N/380V /50Hz

Rated power

11kw

Max splitting width

650mm

Max splitting height

350mm

body size

1980mm*800mm*2400mm

body  weight

1950kg

Tank Capacity

300L

Hydraulic unit  size

1150mm*750mm*1100mm

Hydraulic unit weight

320kg

Total weight

2270kg
