STY -1 series automatic automatic stone splitter

STY -1 series automatic automatic stone splitter

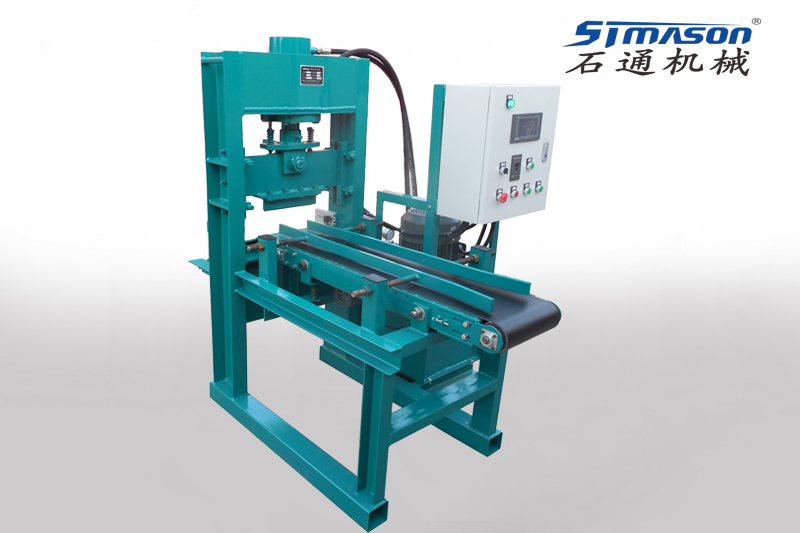

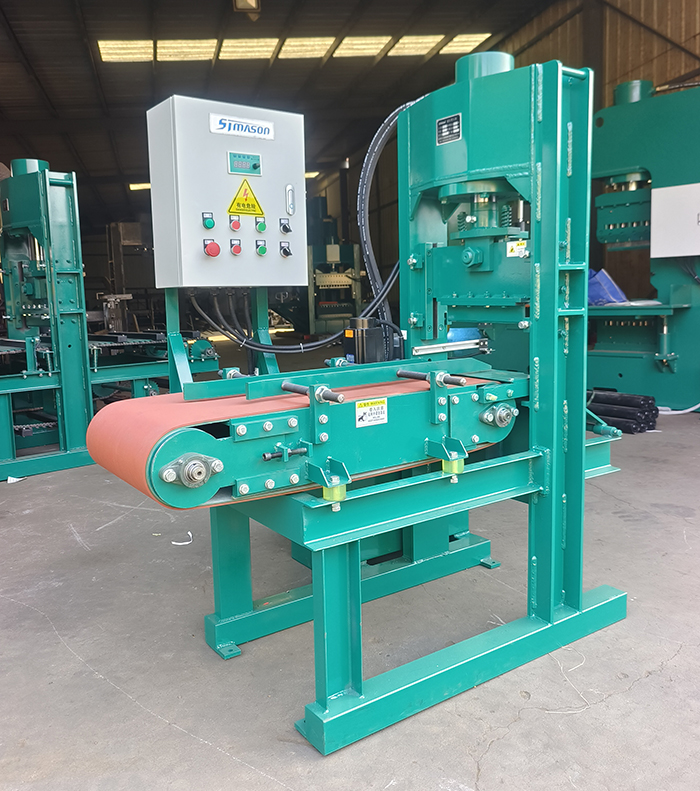

STY-1 series automatic stone splitting machine

The STY-1 series automatic stone splitting machine has a belt conveyor mechanism, which is suitable for splitting long stone strips after sawing. The thickness of the splitting is usually controlled by an infrared sensor. It is easy to adjust and has high efficiency. A variety of processing sizes can be customized.


产品详情








Product Model

STY40-1

STY160-1

Splitting power

40ton

160ton

Power supply

3N/380V/50Hz

3N/380V/50Hz

Rated power

5.5kw

11kw

Max splitting width

300mm

600mm

Max splitting height

150mm

300mm

Min splitting height

20mm

20mm

Tank Capacity

45L

110L

Overall size

1350mm*1100mm*1650mm

1580mm*2100mm*2300mm

Net weight

560kg

1680kg
