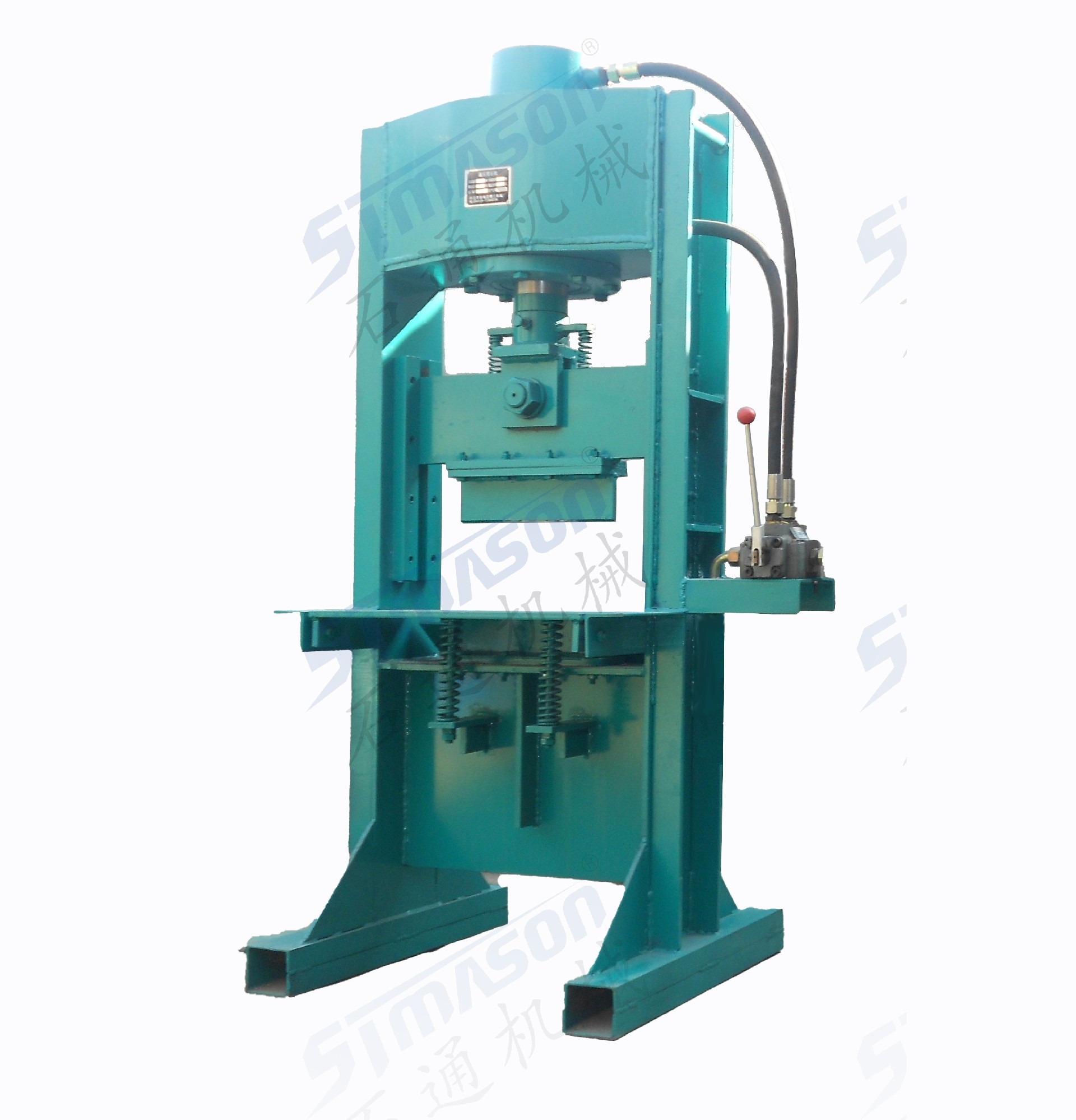

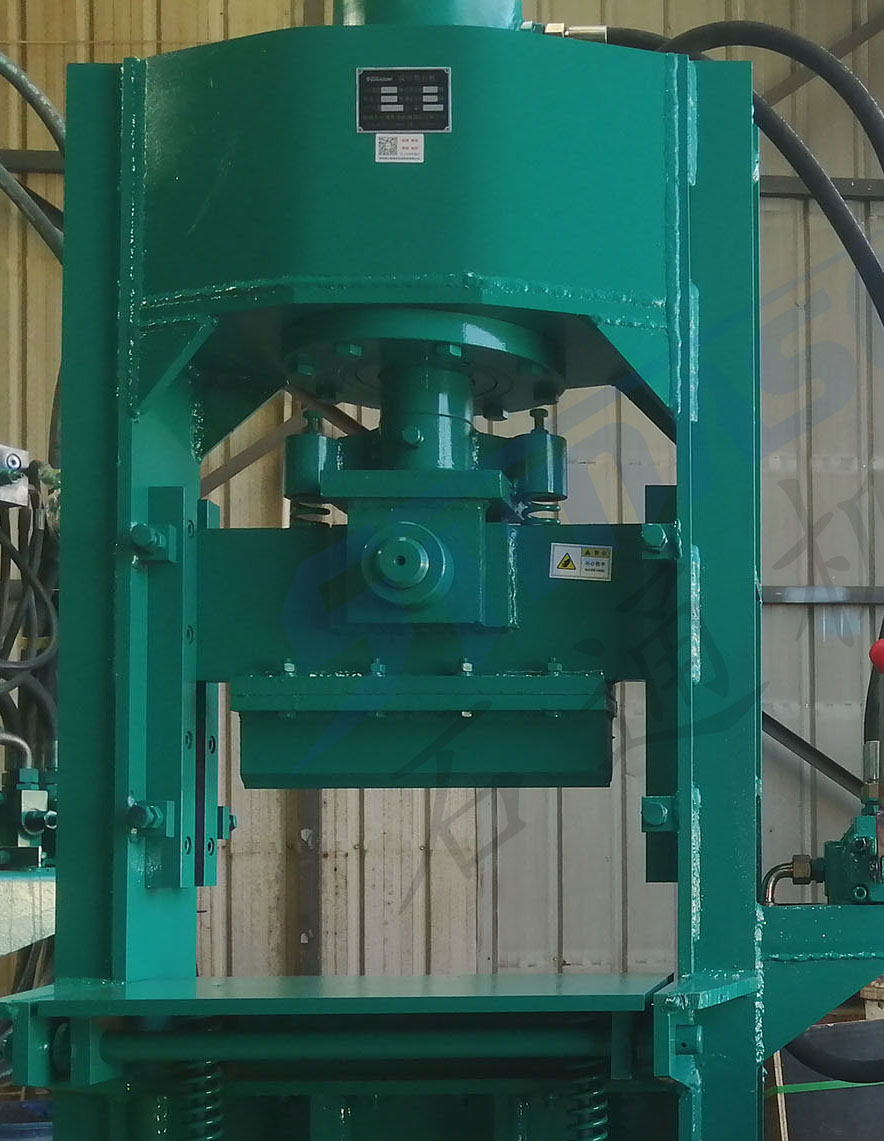

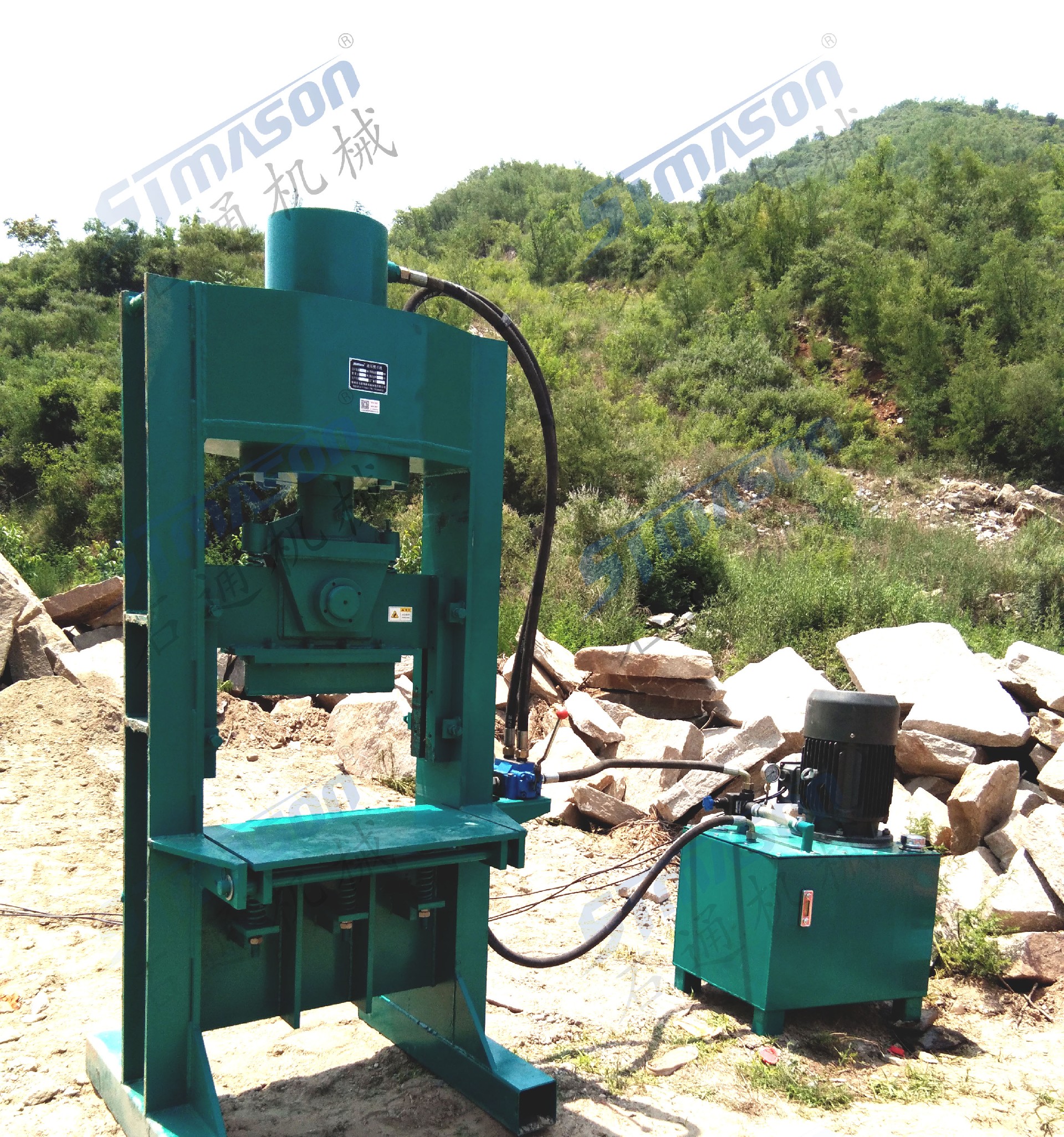

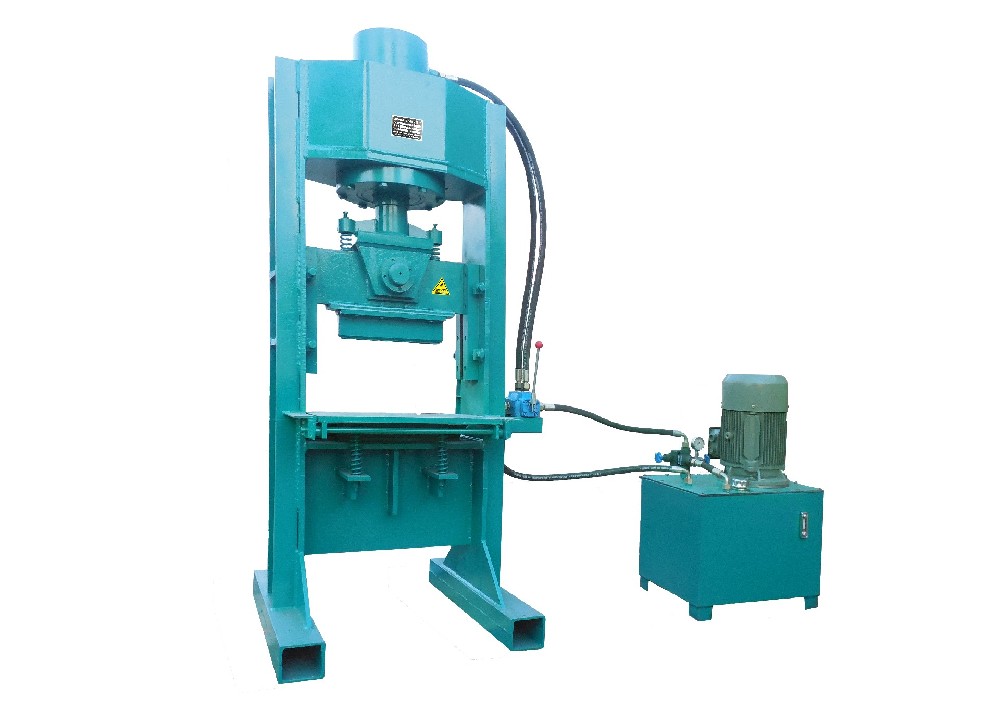

STS80/160 hydraulic stone splitting machine

STS80/160 hydraulic stone splitting machine

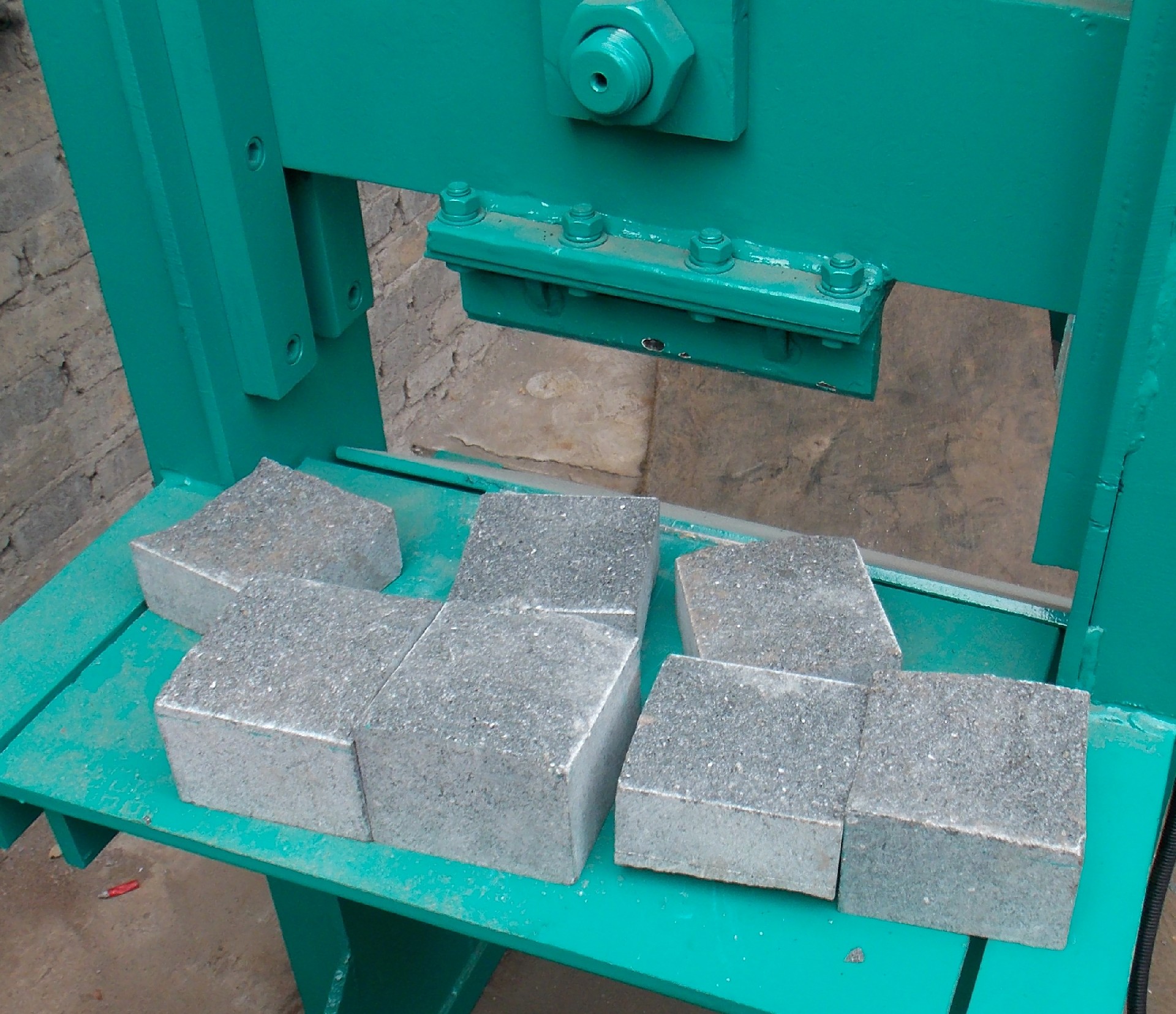

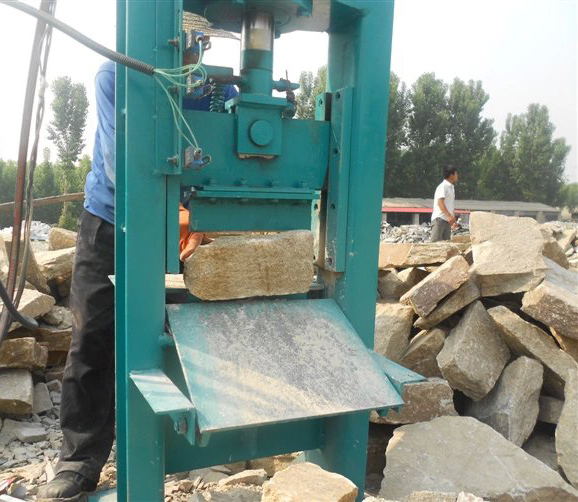

STS80/160 hydraulic stone splitting machine is suitable for hard stone natural section, square stone, floor stone splitting processing.

The machine has a variety of tools to choose from, to adapt to different use scenarios, but also optional extended table with roller shaft.




产品详情


Product   Model

STS80

STS160

Splitting   power

80ton

160ton

Power   supply

3N//380V/50Hz

3N//380V/50Hz

Rated   power

7.5kw

11kw

Max   splitting width

400mm

400mm

Max   splitting height

240mm

320mm

Min   splitting height

20MM

20mm

body   size

700mm*1000mm*1850mm

850mm*1200mm*2300mm

body  weight

820kg

1200kg

Tank   Capacity

110L

110L

Hydraulic   unit  size

700*500*1050

700*500*1150

Hydraulic   unit weight

170kg

210kg

Total   weight

990kg

1410kg
