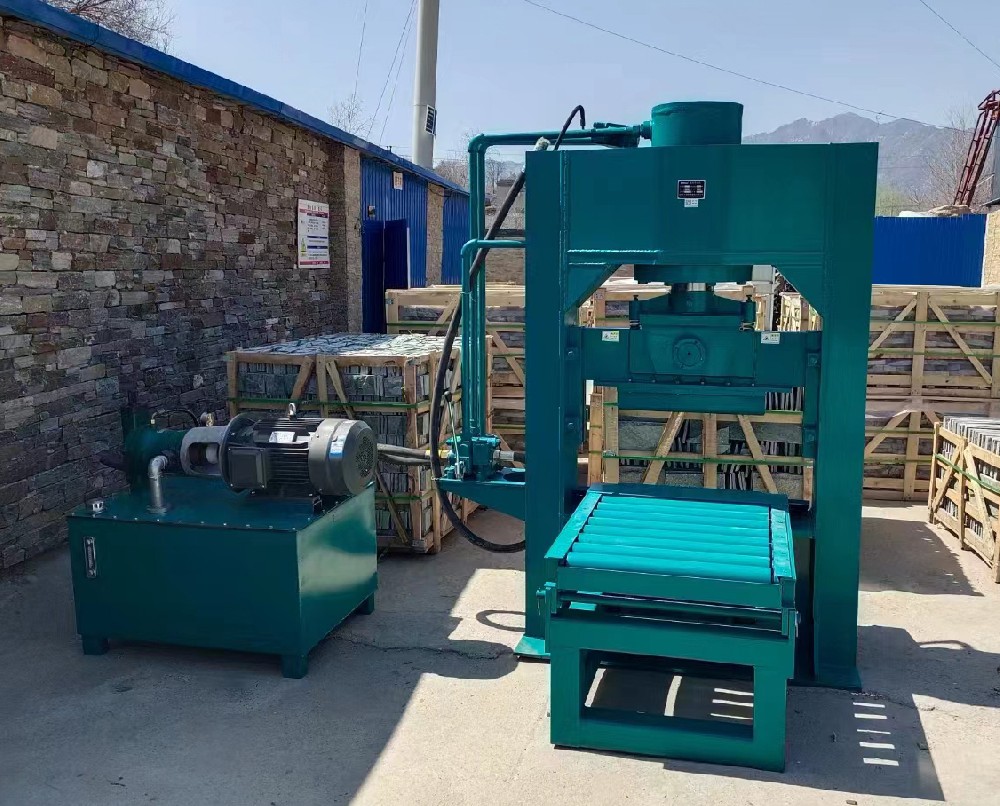

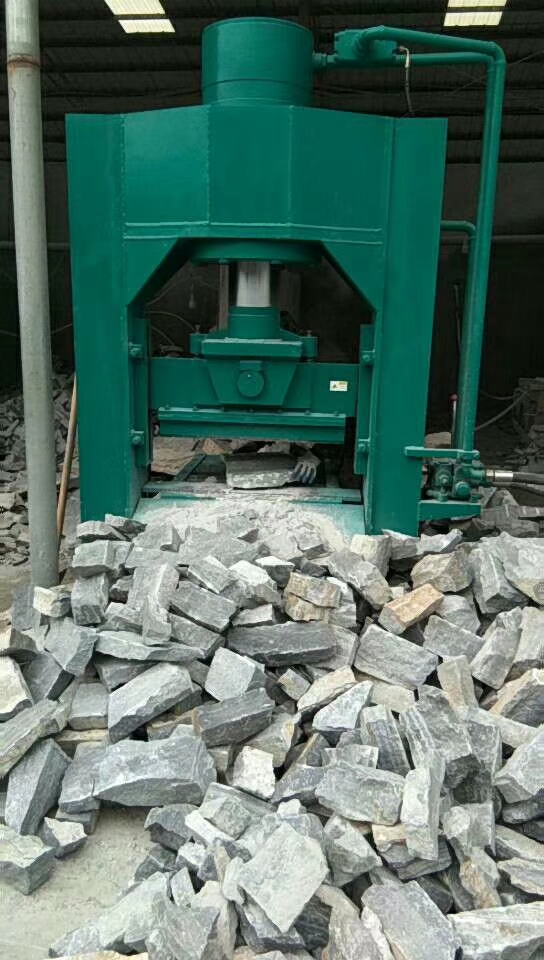

STS200/300A hydraulic stone splitting machine

STS200/300A hydraulic stone splitting machine

STS200/300A hydraulic stone splitting machine has greater cutting force, used for large specifications of stone along the road, paving stone, strip stone and other granite and SLATE natural section cutting, this machine is designed with heavy duty roller table, according to the need to install different lengths and forms of cutting tools, to adapt to a variety of application scenarios.


产品详情






Product Model

STS200A

STS300A

Splitting power

200ton

300ton

motor power

15kw

18.5kw

Max splitting length

600/800mm

00/800mm

Max splitting height

320mm

420mm

body size (mm)

1750*1350*2210

1370*1450*2500

Body weight

2000kg

2400kg

Tank Capacity

300L

300L

Hydraulic station size(mm)

1250*750*1070

1310*780*1080

Hydraulic unit weight

310kg

350kg

Total weight

2310kg

2750kg
