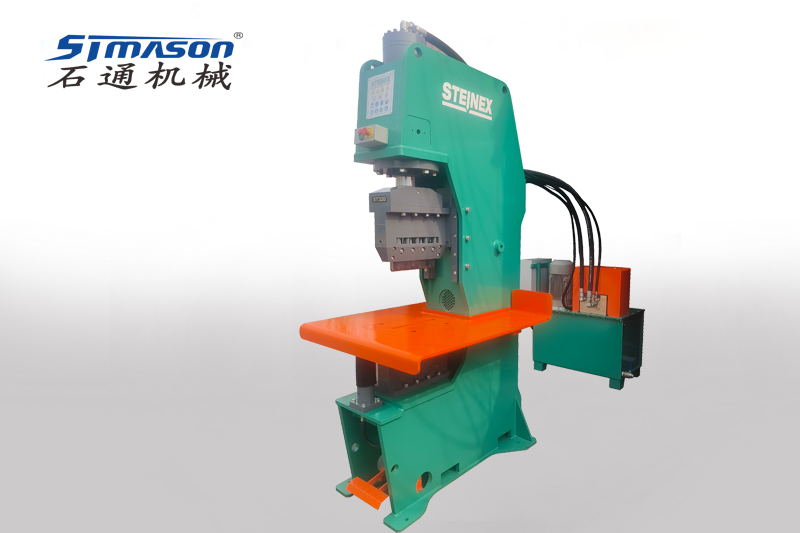

ST320 stone splitting machine designed by STEINEX Italy

ST320 stone splitting machine designed by STEINEX Italy


The ST320 hydraulic stone splitters are designed and authorized by the Italian company STEINEX and manufactured by our company in China.

产品详情


The ST320  hydraulic stone splitters are designed and authorized by the Italian company STEINEX and manufactured by our company in China. These two models embody the technical accumulation of STEINEX over 50 years, the rigorous manufacturing concept of STEINEX, and are ingeniously created in combination with our company's perfect manufacturing system and cost advantages. The ST480 and STEINEX’s LGLOO 320×320 stone splitter share the same design.It and other STEINEX superior products to be launched in the future embody the industry wisdom and top technology of Italy and China.

Sino-Italian partnership, delivering high-end quality at competitive price.


At the same time, our company is the official distributor of the People's Republic of China authorized by STEINEX Srl  of Italy

The models in the ST320 and ST480 series are open frame splitting machines, highly productive and easy to maintain. They feature hydraulically operated shears suitable for splitting any type of stone. Both blades are equipped with an RB system for adjusting each tool based on the roughness of the stones, thereby ensuring high quality splits. These are extremely versatile and fast splitting machines able to produce large quantities of split stones. The STINEX Srl ST320 and ST480 splitting machines made by STMASON are designed for splitting hard material in a continuous production process and are well known throughout the world for their robustness, reliability and precision processing. These machines are used to split granite, basalt, gneiss, limestone, sandstone, porphyry and many other types of natural stone.

All models are equipped with a low noise, high-efficiency hydraulic power unit with high quality hydraulic components offering between 20 to180 tons of splitting pressure depending on the model.





A - FRAME
          机架
dimensions (BxLxH)1000x1400x2650 mmWeight2450 kg
 外形尺寸(宽*长*高 重量
B   - Hydraulic
          cylinder
        液压缸
standard   motor
    标配电机
7,5 Kw cylinder   option 40 T
    选配油缸  40 T
option cylinder 60 T
    选配油缸 60T
C  - Blades
            刀具
tool   width (X)
    刀刃宽度
320 mmblade   width (Y)
    刀具宽度
460mmsplitting   height (Z)
    劈裂高度
320 mm
single tool adaptation system
    刀片浮动距离
1 RB = 10 mmoption   single tool adaptation
    选配刀片浮动距离
2 RB   = 20 mmNumber   of blades
    刀片数量
8
flat tools option

    选配平刀片
for   splitting material with regular surface
    用于表面平整石材
radius   tools option

    选配弧形刀片
for   splitting material with non-regular surface
    用于表面不平整石材
potentiometer for blade lifting position

    刀具回程控制电位器
D   - Bench
         工作台


steel   reinforcedbench dimensions
    加强工作台尺寸
1000x1150mminterchangeable   plate
    工作台衬板
 500x310mmbench   cylinder running
    工作台油缸行程
50 mm
G - Hydraulic
           unit
        液压站
dimensions   (BxLxH)
    外形尺寸宽*长*高
1360x650x1200 mmweight   without oil
    不含油的重量
400 kg1 Blade anti-drop safety valve
    刀具防坠落平衡阀

silent hydraulic unit with double pumps
    静音双泵液压站
delivery   oil filtering
    油液过滤精度
20umoil   type
    推荐油品
ISO   VG 46
standard hydraulic unit
    标配液压站
7.5kwair   filter
    空气过滤精度
 10um油箱容量
     260    L
H - Motor
        电动机
asynchronous   electric motor
    异步电动机
standard   7,5 kW
    标配7.5kw

N - Electric
         pane
l

电气箱
electric panel protection IP65          电气箱防护等级  IP65
