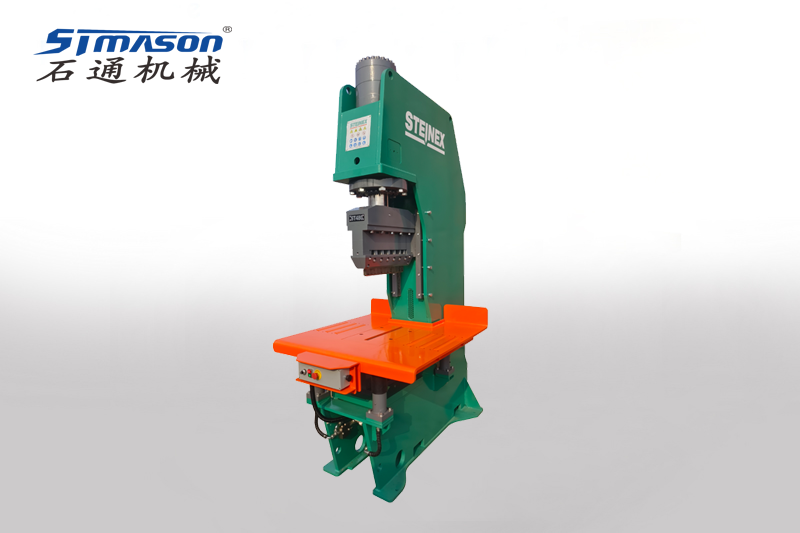

ST480 stone splitting machine designed by STEINEX Italy
The ST480 hydraulic stone splitters are designed and authorized by the Italian company STEINEX and manufactured by our company in China
The ST480 hydraulic stone splitters are designed and authorized by the Italian company STEINEX and manufactured by our company in China
The ST480 hydraulic stone splitters are designed and authorized by the Italian company STEINEX and manufactured by our company in China. These two models embody the technical accumulation of STEINEX over 50 years, the rigorous manufacturing concept of STEINEX, and are ingeniously created in combination with our company's perfect manufacturing system and cost advantages. It and other STEINEX superior products to be launched in the future embody the industry wisdom and top technology of Italy and China.
Sino-Italian partnership, delivering high-end quality at competitive price.
At the same time, our company is the official distributor of the People's Republic of China authorized by STEINEX of Italy
A - FRAME 机架 | dimensions (BxLxH) | 1200x1760x3000 mm | Weight | 3920kg | option: manipulator MP820 | ||||
外形尺寸(宽*长*高 | 重量 | 选配:机械手 MP820 | |||||||
B - Hydraulic cylinder 液压缸 | one piece piston rod 单油缸 | 100 T cylinder option 选配油缸100T | option cylinder 120 T 选配油缸120T | ||||||
standard motor 标配电机 | 7,5 Kw | motor option 选配电机 | 11 Kw | ||||||
C - Blades 刀具 | tool width (X) 刀刃宽度 | 480 mm | blade width (Y) 刀具宽度 | 620mm | splitting height (Z) 劈裂高度 | 450 mm | |||
flat tools option 选配平刀片 | for splitting material with regular surface 用于表面平整石材 | tools number for each blade 刀片数量 | 12 | single tool adaptation system 刀片浮动距离 | 2 RB = 20 mm | ||||
radius tools option 选配圆弧刀片 | for splitting material with non-regular surface 用于表面不平整石材 | potentiometer for blade lifting position 刀具回程控制电位器 | lower and upper blade anti-shift guide option 选配上下刀片防位移导轨 | ||||||
D - Bench 工作台 | steel reinforce bench dimensions 工作台尺寸 | 1200x1150mm | interchangeable plate 工作台衬板 | 630x335mm | nr 4 bench cylinders 4个工作台油缸 | running 50 mm 行程50mm | |||
option bench 3 rollers right 选配工作台 3 个滚轮 右侧 | option bench 3 rollers left 选配工作台 3 个滚轮 左侧 | ||||||||
G - Hydraulic unit 液压站 | silent hydraulic unit with double pumps 静音双泵液压站 | delivery oil filtering 20 micron 油液过滤精度20um | air filter 10 micron 空气过滤精度10um | Blade anti-drop safety valve 刀片防坠落安全阀 | option: rapid splitting system 选配:快速分裂系统 | ||||
standard hydraulic unit 7,5 Kw 标配液压单元7.5kw | dimensions (BxLxH) 外形尺寸(宽x长x高) | weight without oil 不含油的重量 | Tank capacity 油箱容量 | oil type 推荐油品 | |||||
1360x650x1200 mm | 400 kg | 260 L | ISO VG 46 | ||||||
option:hydraulic unit 11 Kw 选配液压单元11kw | dimensions (BxLxH) 外形尺寸(宽x长x高) | weight without oil 不含油的重量 | Tank capacity 油箱容量 | oil type 推荐油品 | |||||
1455x720x1300mm | 460kg | 350L | ISO VG 46 | ||||||
H - Motor | asynchronous electric motor 三相异步电动机 | standard 7,5 kW 标准7.5KW | option electric motor 11 kw 选配电动机11kw | ||||||
N - Electric panel 电气箱 | electric panel protection IP65 电气箱防护等级 IP65 |
